item | Code |
|---|---|
nickel hinge / pair | CELPX99XXV |
titanium hinge / pair | CELPX66XXV |
retaining catch | DP28SN9 |
adjustable retaining catch | DP39XXG |
release device – grey | DPMSNG |

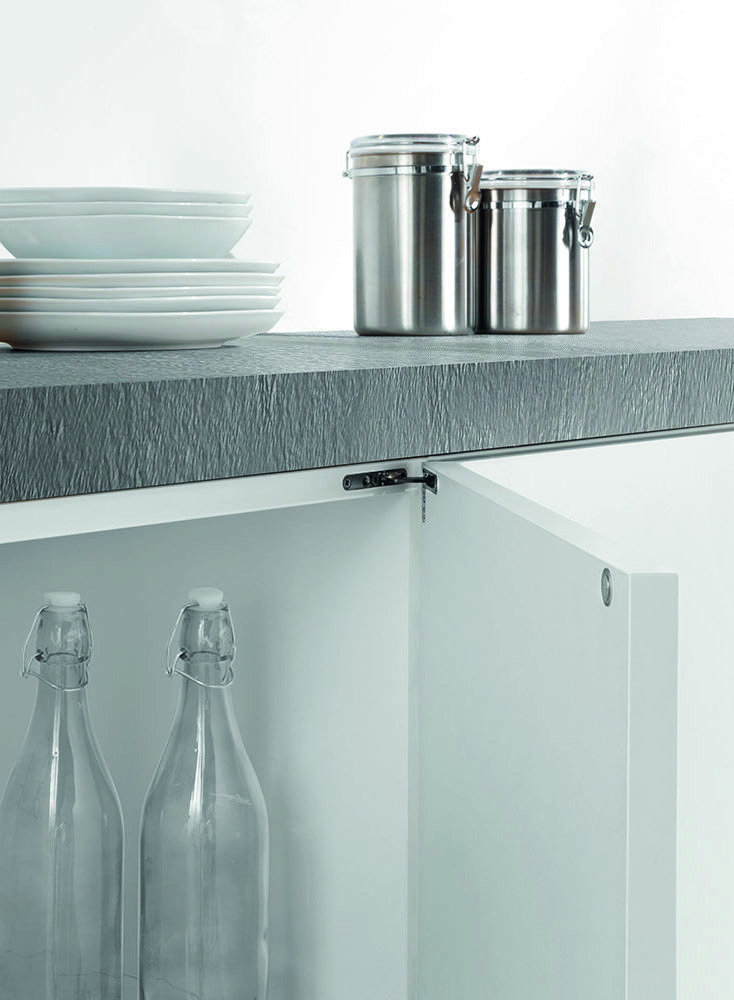

Salice Air Concealed Hinge – Push
- 105˚ opening full overlay reverse sprung hinge
- compact concealed hinge with integrated push-to-open
- ideal for handleless doors
- for doors of minimum 18mm thickness
- for minimum carcass thickness of 16mm
- maximum door weight 20kg per pair
- maximum door height 2100mm
- maximum door width 600mm
- retaining catch and release device required
- 10mm diameter hole x 40mm deep drilling for release device
- 15mm diameter hole for adjustable retaining catch on door side
- packed in paired kits with fixing screws
