item | Code |
|---|---|
nickel hinge | C2APA99 |
retaining catch | DP28SN9 |
adjustable retaining catch | DP39XXG |
release device – grey | DPMSNG |

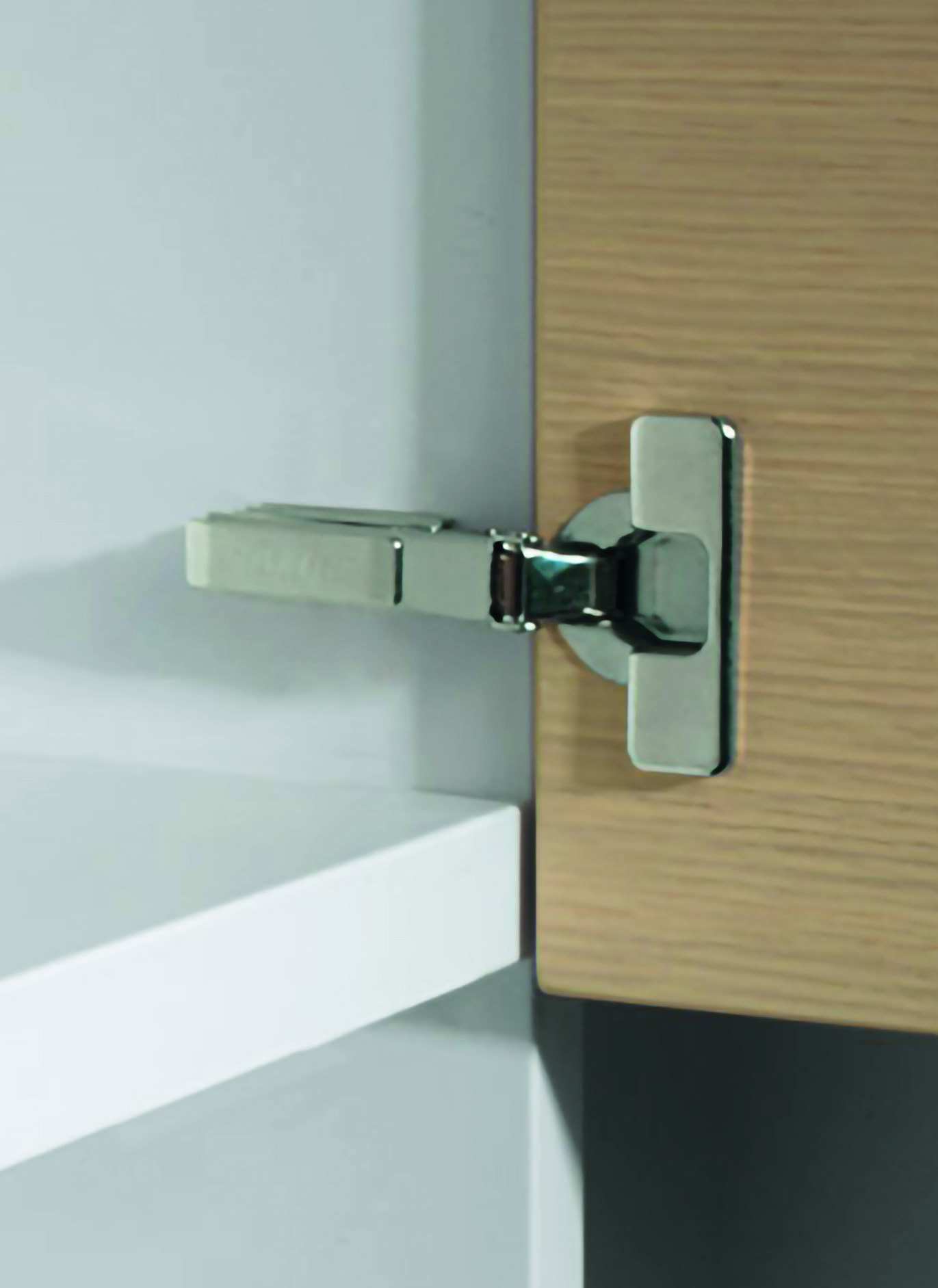

Salice Push Series 200 110 ̊ Full Overlay Hinge
- 110˚ opening full overlay clip-on hinge
- reverse sprung push-to-open hinge
- door self opens when release device is activated
- door thickness from 16mm to 26mm
- 35mm cup x 11mm drilling depth
- retaining catch and release device required
- 10mm diameter hole x 40mm deep drilling for release device
- 15mm diameter hole for adjustable retaining catch on door side
