item | Code |
|---|---|
hinge – for door from 2–4kg | FRBKFEPWSN9 |
hinge – for door from 4–6kg | FRBKFEPISN9 |
cover-grey | SRXB78AMXXXXF |
central hinge-grey cover cap | FRCK59RXXXM |
mounting plate | BAPGR39 |
retaining catch | DP28SN9 |
adjustable retaining catch | DP39XXG |
release device – grey | DPMSNG |

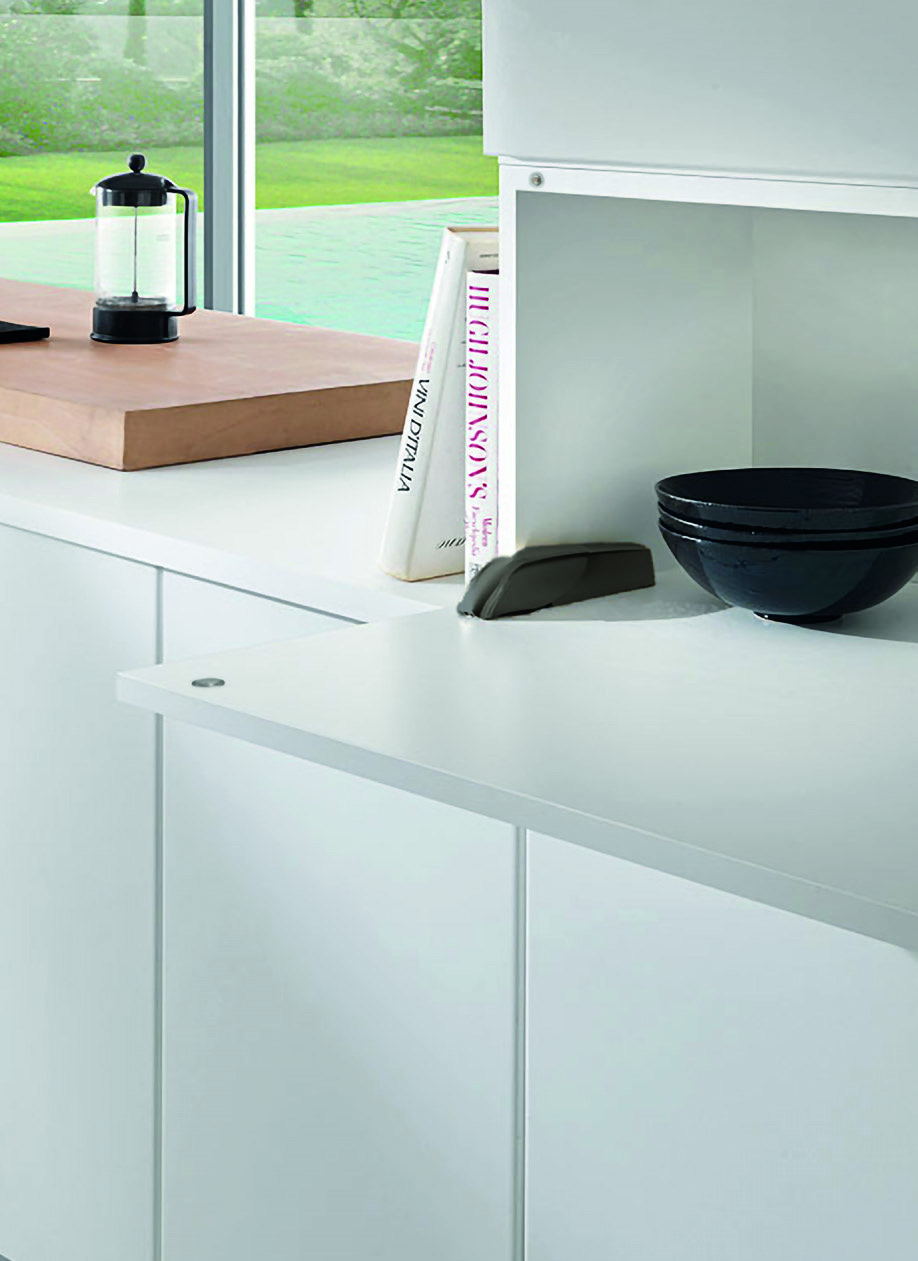

Salice Pacta Push
- 90˚ opening compact hinge for fall flaps
- flush alignment of door and cabinet
- side, front and vertical door adjustment
- decelerated opening
- push-to-open
- retaining catch and release device required
- 10mm diameter hole x 40mm deep drilling for release device
- 15mm diameter hole for adjustable retaining catch on door side
- 25kg load capacity per door
- for door heights from 280 – 400mm
- for door weights from approx. 2kg – 6kg
- central hinge for cabinets over 900 mm width to be used
- not suitable for in-frame doors
- with grey covers
- 35mm cup x 13mm drilling depth
- available as a paired kit
