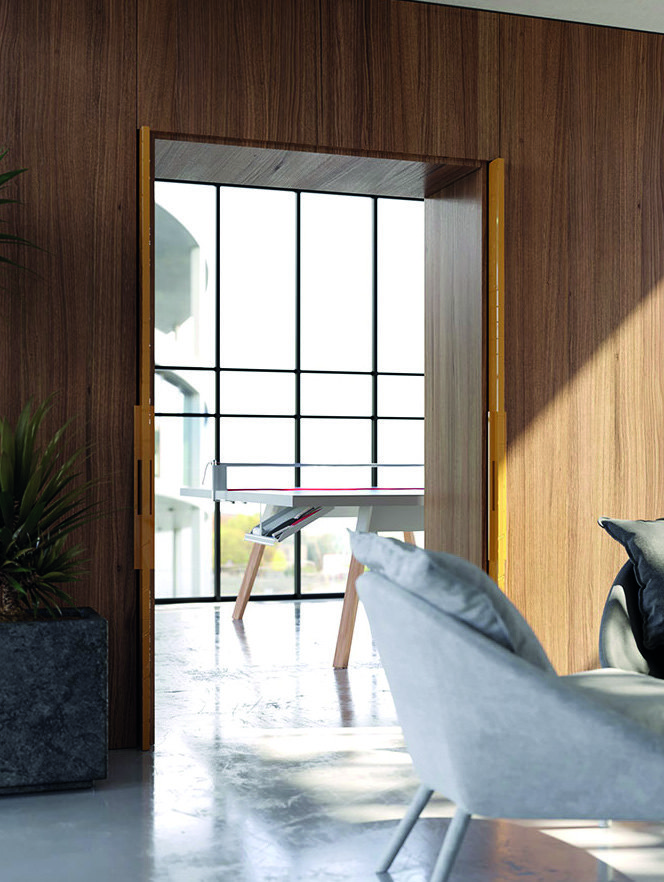

Exedra Pocket Door System

  • patented cam movement with assisted door insertion and extraction
  • buffered soft-close return
  • mounting with clips to facilitate extraction of the mechanism in case of maintenance
  • quick coupling hinges
  • front adjustments on the hinge coupling column
  • 30kg maximum weight per door evenly distributed
  • door thickness 18-30mm
  • door width 400-900mm
  • door height 1576-2530mm
  • door height 1333-1575mm also available subject to technical clarification from manufacturer
  • protrusion value for door heights of 1333-1575mm will be higher than the normal calculation
  • door vertical adjustment +4/-1mm
  • door horizontal adjustment ±2mm
  • door front adjustment ±4mm
  • pre-assembled to your bespoke requirements
  • made to order
Loading...

VE55AAS2500NN,VE55AAD2500NN,DP38XX91/39XXG,YE55KIT0040,YE55KIT0001,YE55KIT0002,YE55KIT0201,YE55KIT0202,YE55KIT0203

order form

item
Code
pocket door system LH
VE55AAS2500NN
pocket door system RH
VE55AAD2500NN
magnetic barrel and adjuster catch
DP38XX91/39XXG
roller guide for framed wooden doors / pair
YE55KIT0040
top mount connector kit for deph 400-650mm
YE55KIT0001
top mount connector kit for deph 400-650mm
YE55KIT0002
grey cover strip
YE55KIT0201
black cover strip
YE55KIT0202
white cover strip
YE55KIT0203
