The pocket door kits are made to order. Please download the order form from the additional info tab, complete and return to us.

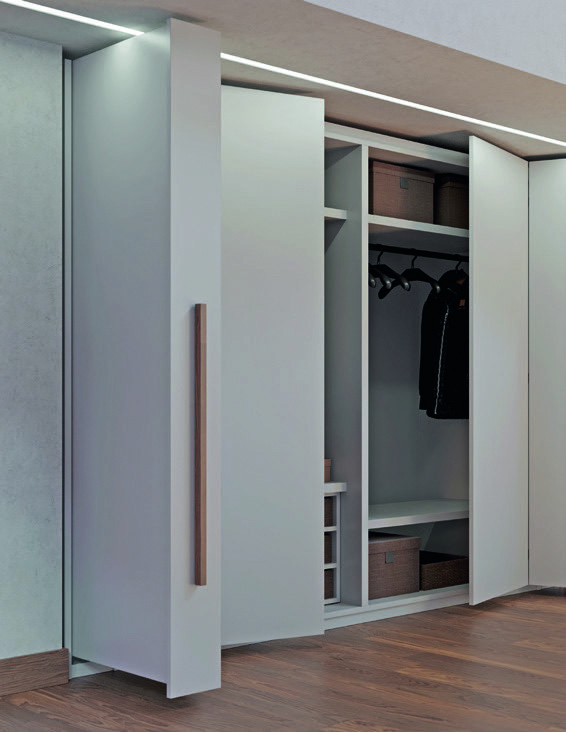

Exedra 2 Star
- mechanism is hidden by panel fixed to the front
- cabinet depth required = door width + 280mm
- single door widths from 450mm – 750mm
- folding pocket door system which enables simultaneous movement of two linked doors
- operated by magnetically assisted motion-control system that creates a smooth balanced movement
- handle can be fitted on the edge of the door allowing effortless opening and closing with one hand
- structural aluminium frame fixes to side of cabinet meaning all load-bearing is carried by side pane
- exterior surfaces of doors are always protected during opening and closing
- requires 180mm pocket
- door height minimum 1800mm, maximum 2600mm
- maximum weight per mechanism 50kg
- maximum weight per door 25kg
- vertical adjustment ± 5mm, horizontal adjustment ± 3.5mm
- front adjustment upper ± 3mm, lower ± 2mm
- door thickness minimum 18mm – maximum 25mm
- optional Electric Push Kit allows for use on handleless doors
- if installed as a pair, mechanism must be configured using the door alignment kit
- made to order
