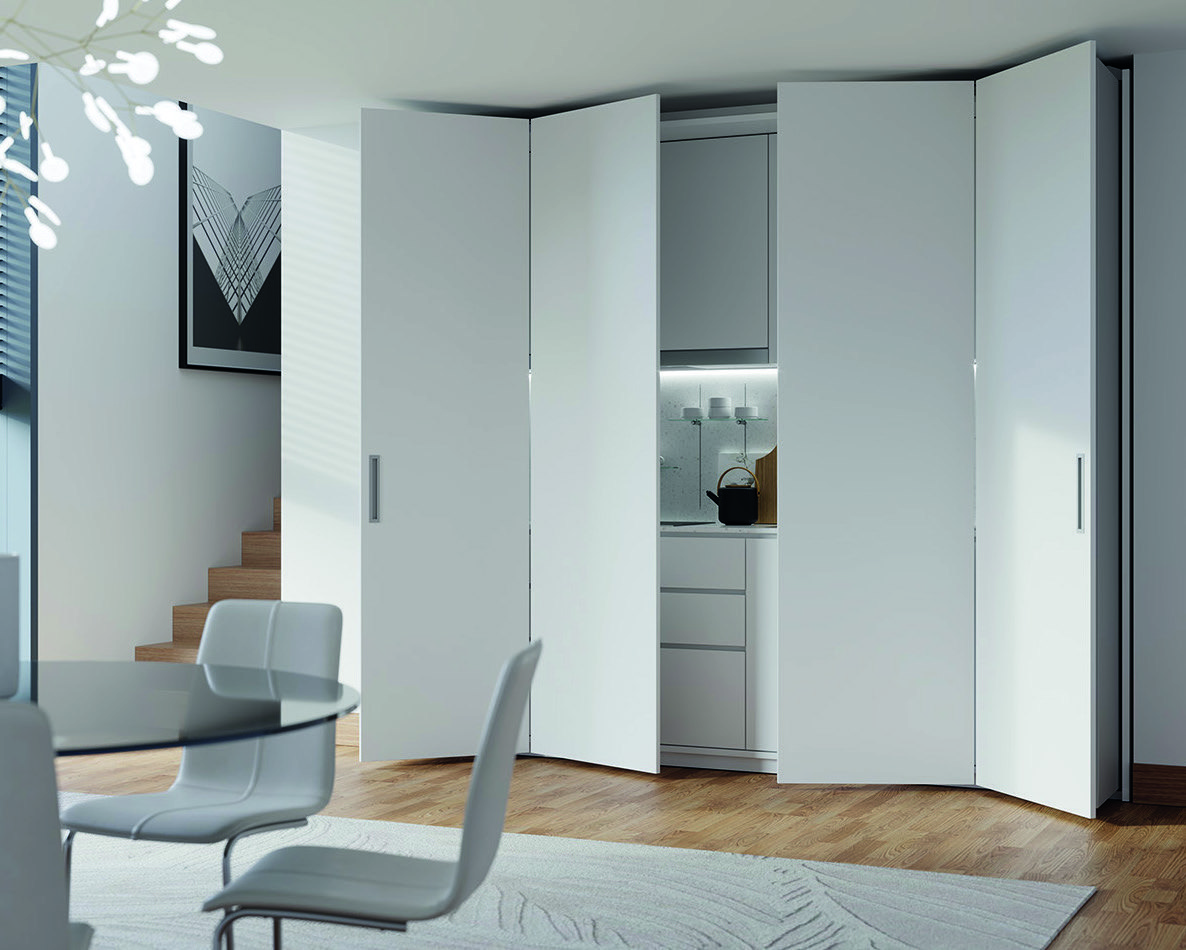

Exedra 2 Bi-Fold Pocket Door System

  • folding pocket door system which enables simultaneous movement of two linked doors
  • operated by magnetically assisted motion-control system that creates a smooth balanced movement
  • handle can be fitted on the edge of the door allowing effortless opening and closing with one hand
  • structural aluminium frame fixes to side of cabinet meaning all load-bearing is carried by side pane
  • exterior surfaces of doors are always protected during opening and closing
  • requires 180mm pocket
  • door height minimum 1800mm, maximum 2600mm
  • maximum weight per mechanism 50kg
  • maximum weight per door 25kg
  • vertical adjustment ± 5mm, horizontal adjustment ± 3.5mm
  • front adjustment upper ± 3mm, lower ± 2mm
  • door thickness minimum 18mm – maximum 25mm
  • optional Electric Push Kit allows for use on handleless doors
  • if installed as a pair, mechanism must be configured using the door alignment kit
  • made to order
